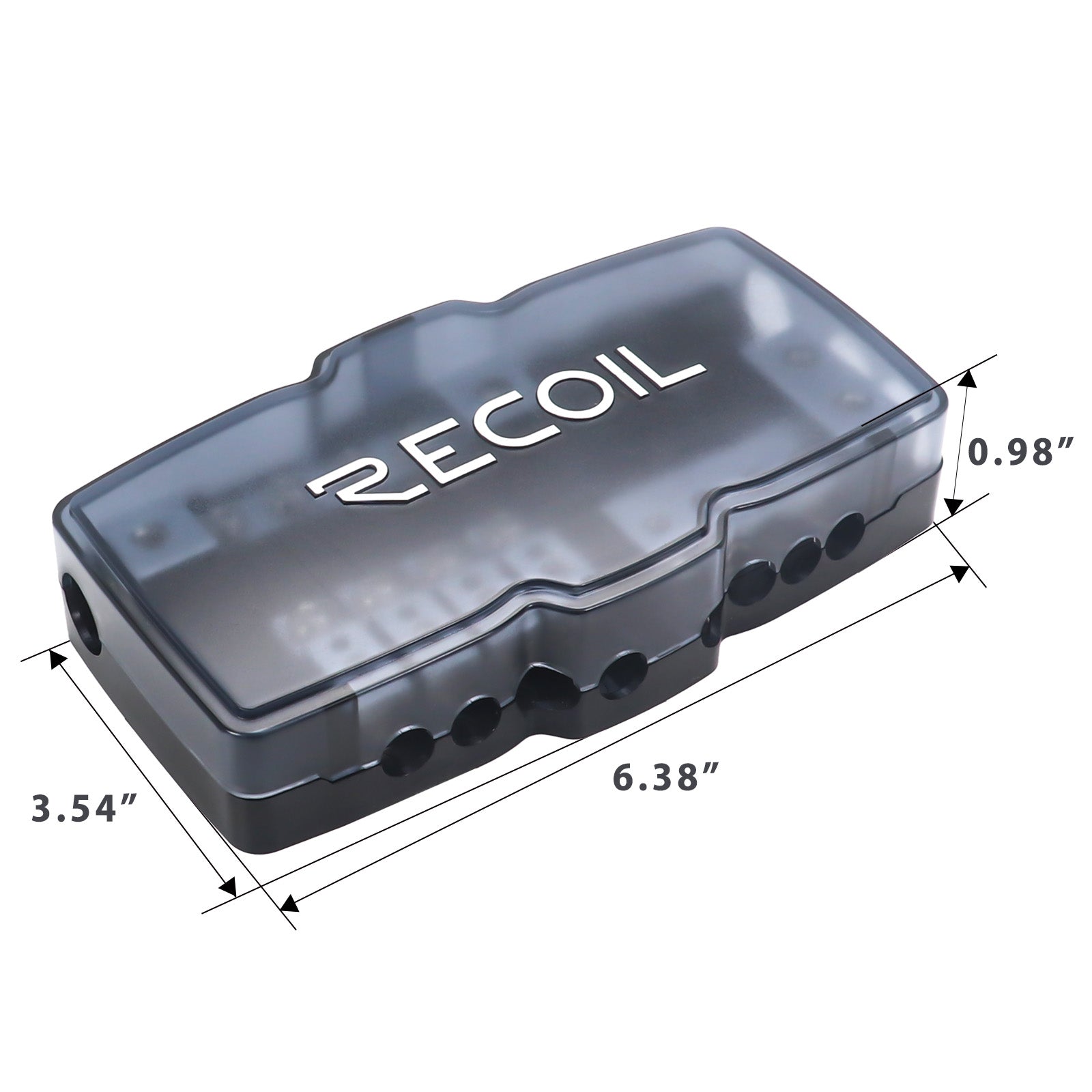

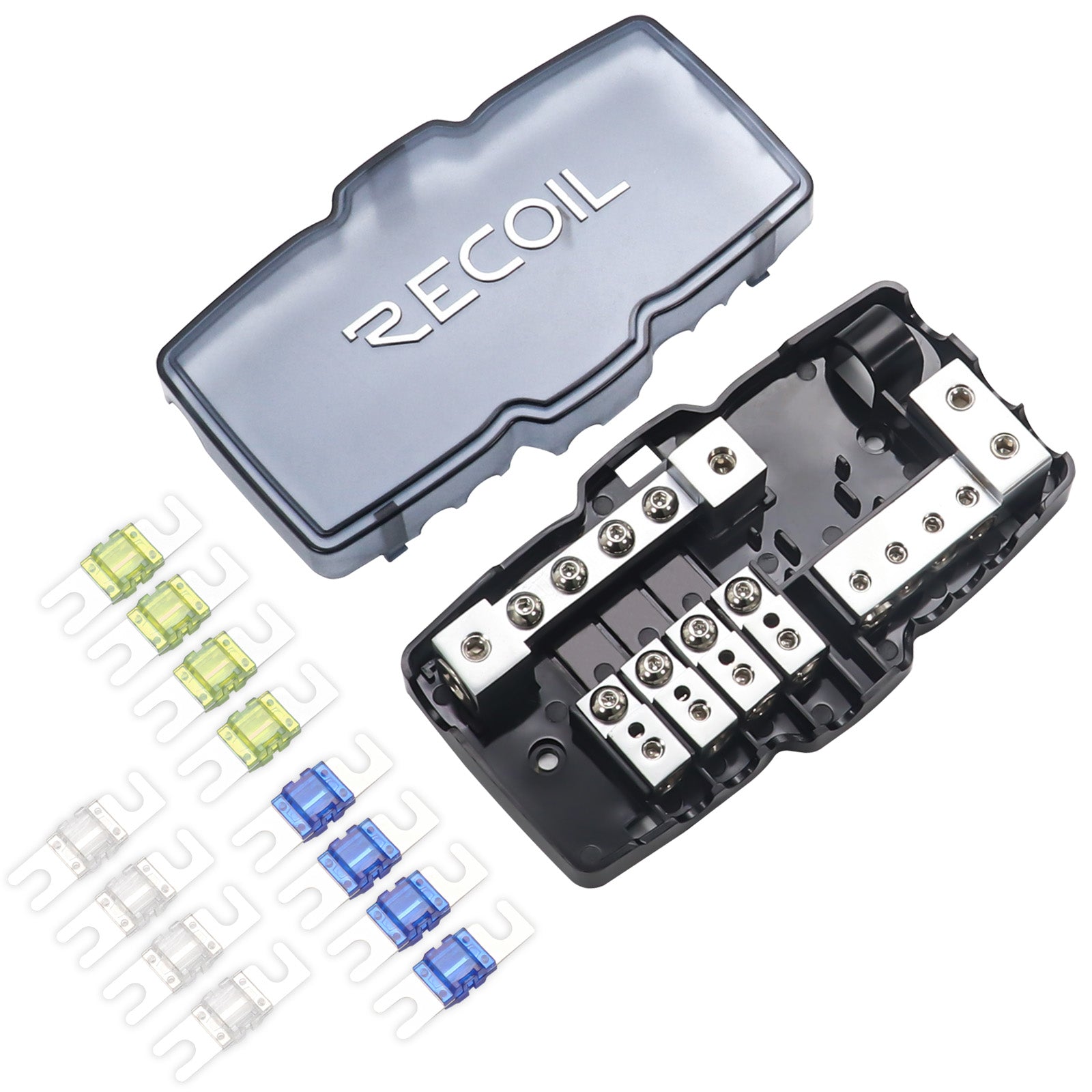

MPG4 - 4-way Mini-anl Fused Distribution Block with 4-way Ground Block, Each Positive and Negative Block with Two 0/2/4 Gauge Inputs & Four 4/8 Gauge Outputs, Fused Distribution Block with 12pcs 60a, 80a, 100a Fuses, Solid Brass for Maximum Power Transfer

The MPG4 is a dual-function distribution block that combines a 4-way Mini-ANL fused positive block with a 4-way ground block in a single compact unit — purpose-built for multi-amplifier installations. Each block accepts two 0/2/4 gauge inputs and splits to four 4/8 gauge outputs, keeping wiring clean and current delivery organized. Solid brass construction ensures minimal resistance and maximum power transfer throughout the circuit.

• Dual-block design: Positive and negative blocks integrated into one unit for streamlined installation.

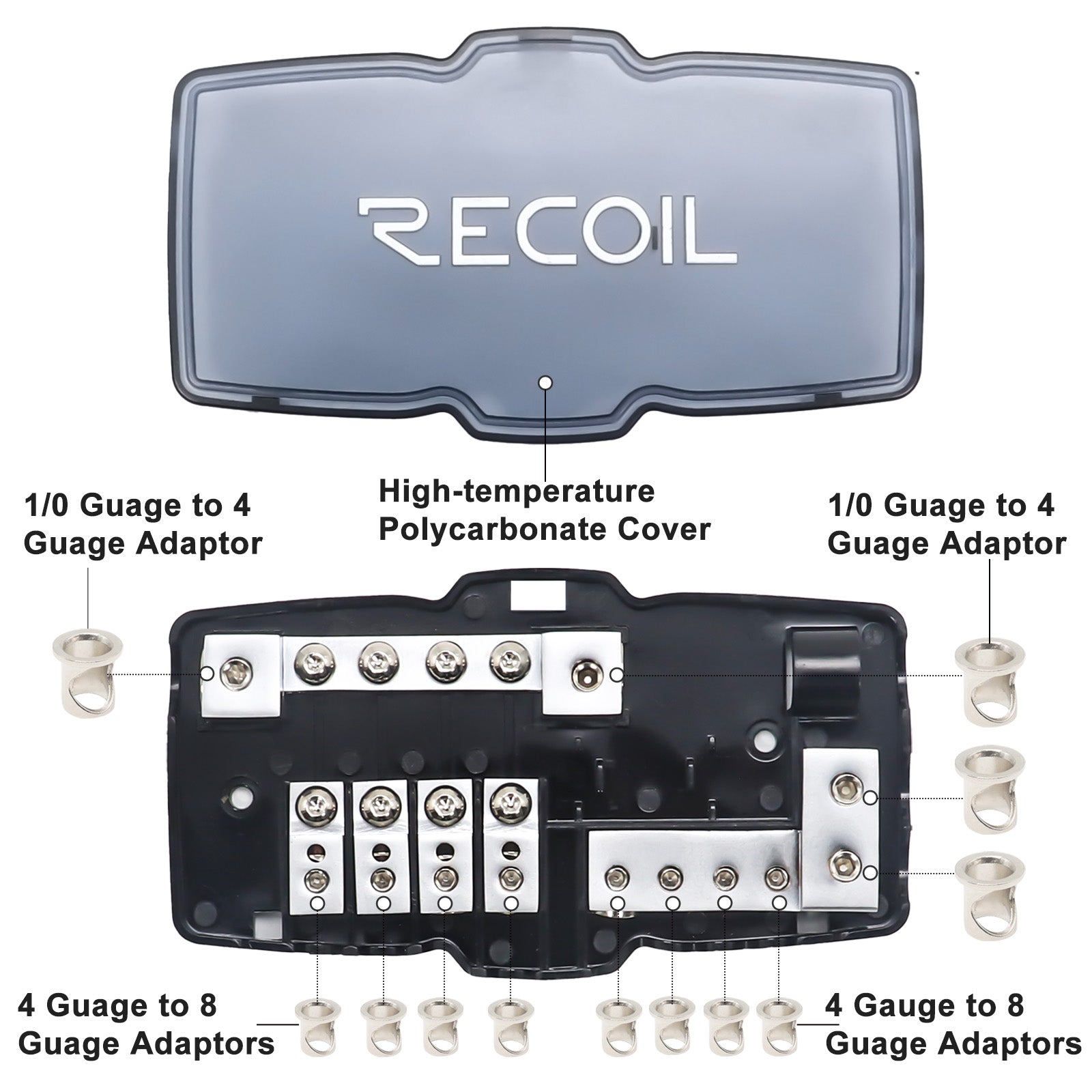

• Flexible input/output: Two 0/2/4 gauge inputs and four 4/8 gauge outputs per block — positive and ground.

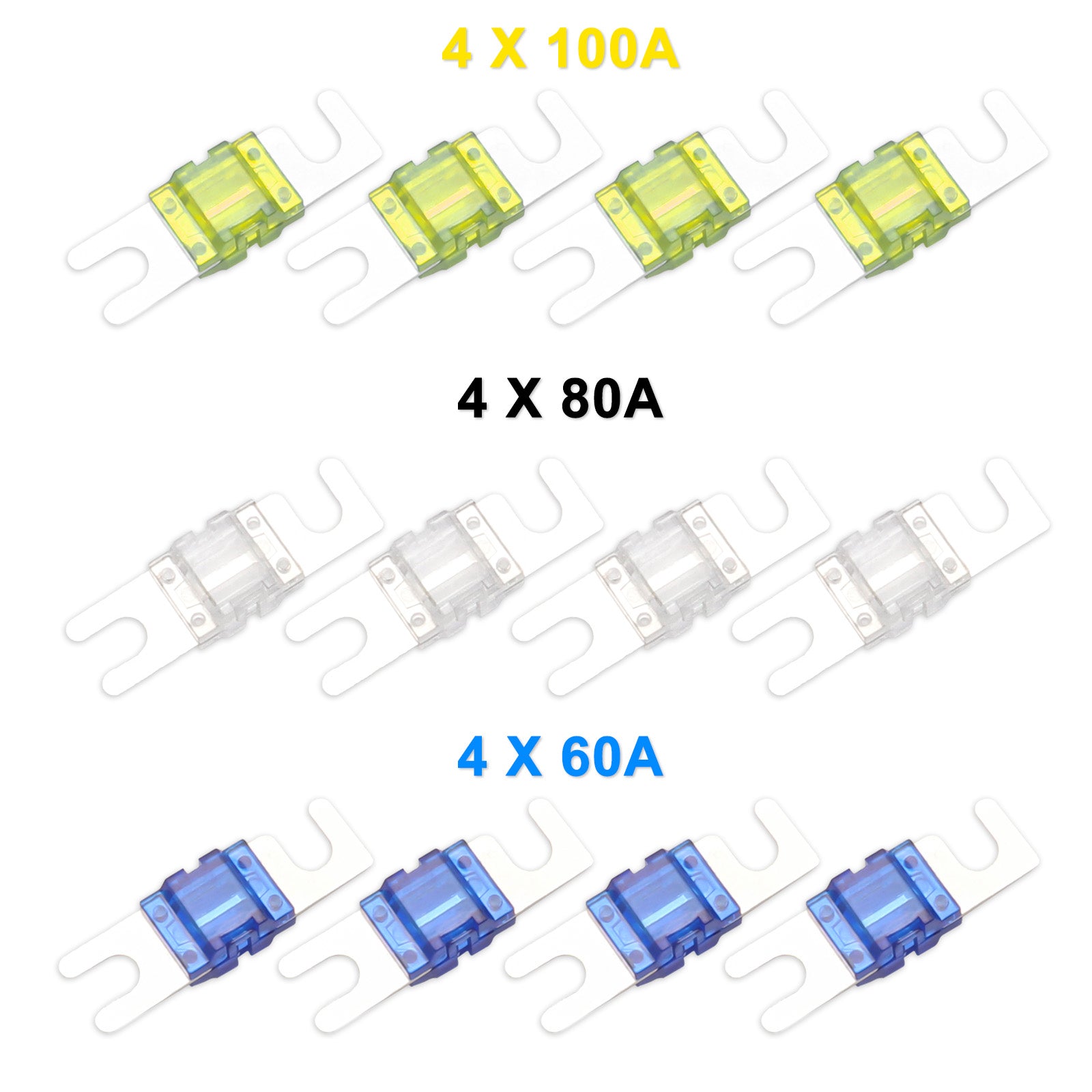

• 12-piece fuse kit included: Four 60A, four 80A, and four 100A Mini-ANL fuses cover a range of amplifier configurations.
• Solid brass terminals: Forged and machined for low resistance and reliable long-term conductivity.

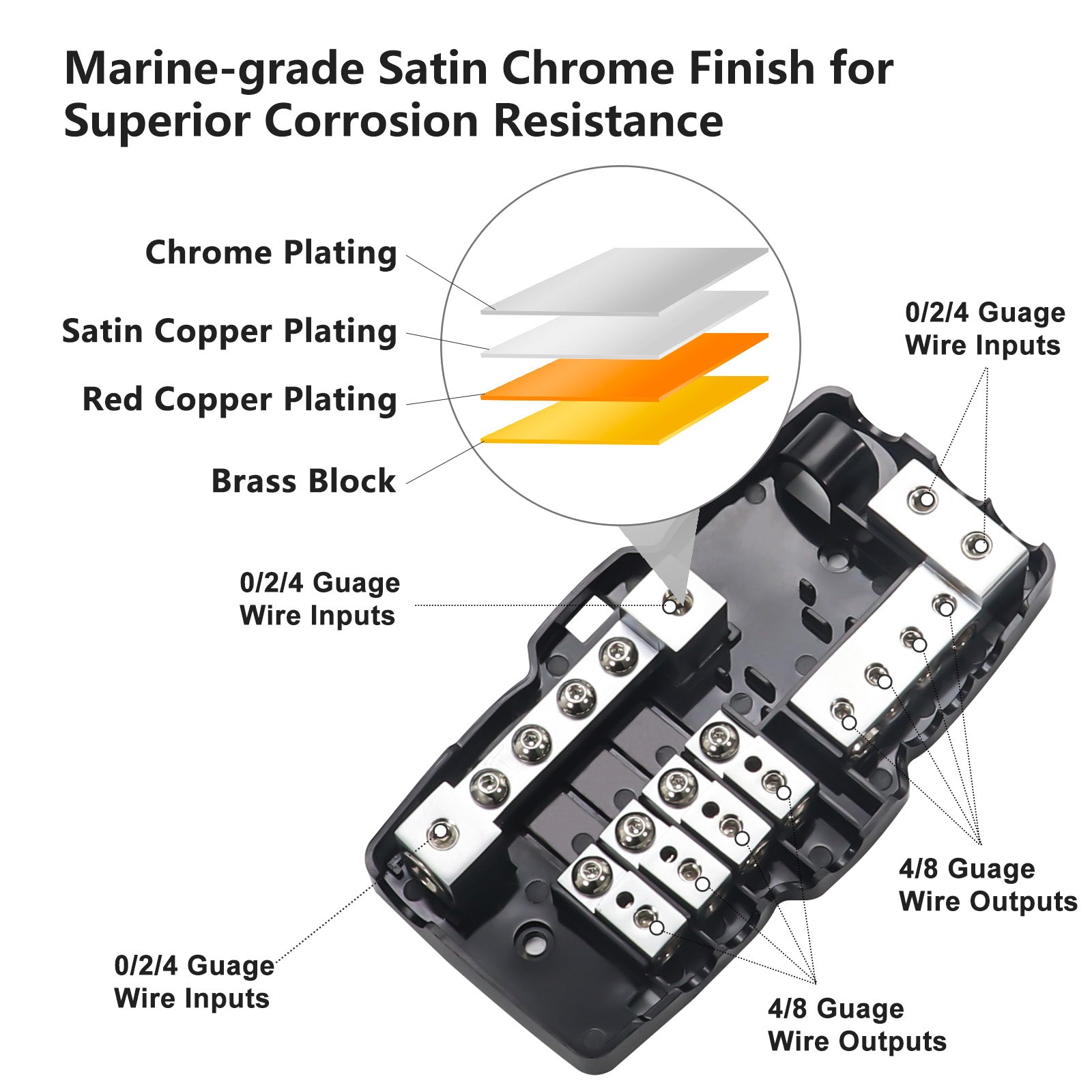

• Corrosion-resistant finish: Marine-grade satin chrome plating stands up to heat and moisture.
• High-temp housing: Poly enclosure rated for the thermal demands of high-powered audio systems.
