BRL200 - Recoil 200-amp Battery Isolator and High Current Starter Relay

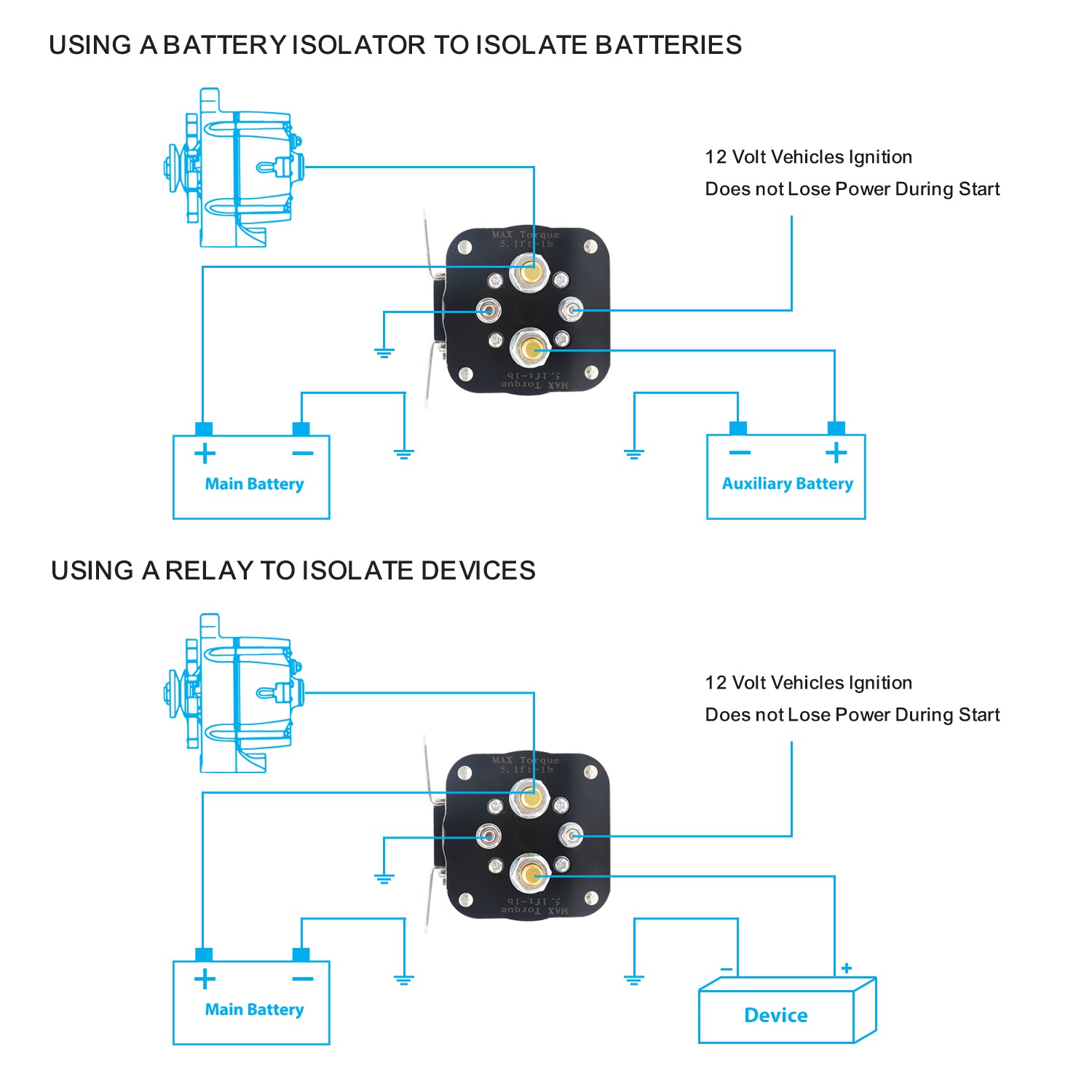

The BRL200 is a 200-amp battery isolator and high current starter relay designed for multi-battery vehicle electrical systems. It keeps auxiliary battery banks isolated from the main starting battery, preventing equipment use from draining the battery needed to start the engine. Unlike conventional isolators, the BRL200 does not introduce a voltage drop to the secondary battery, preserving charge efficiency across the system.

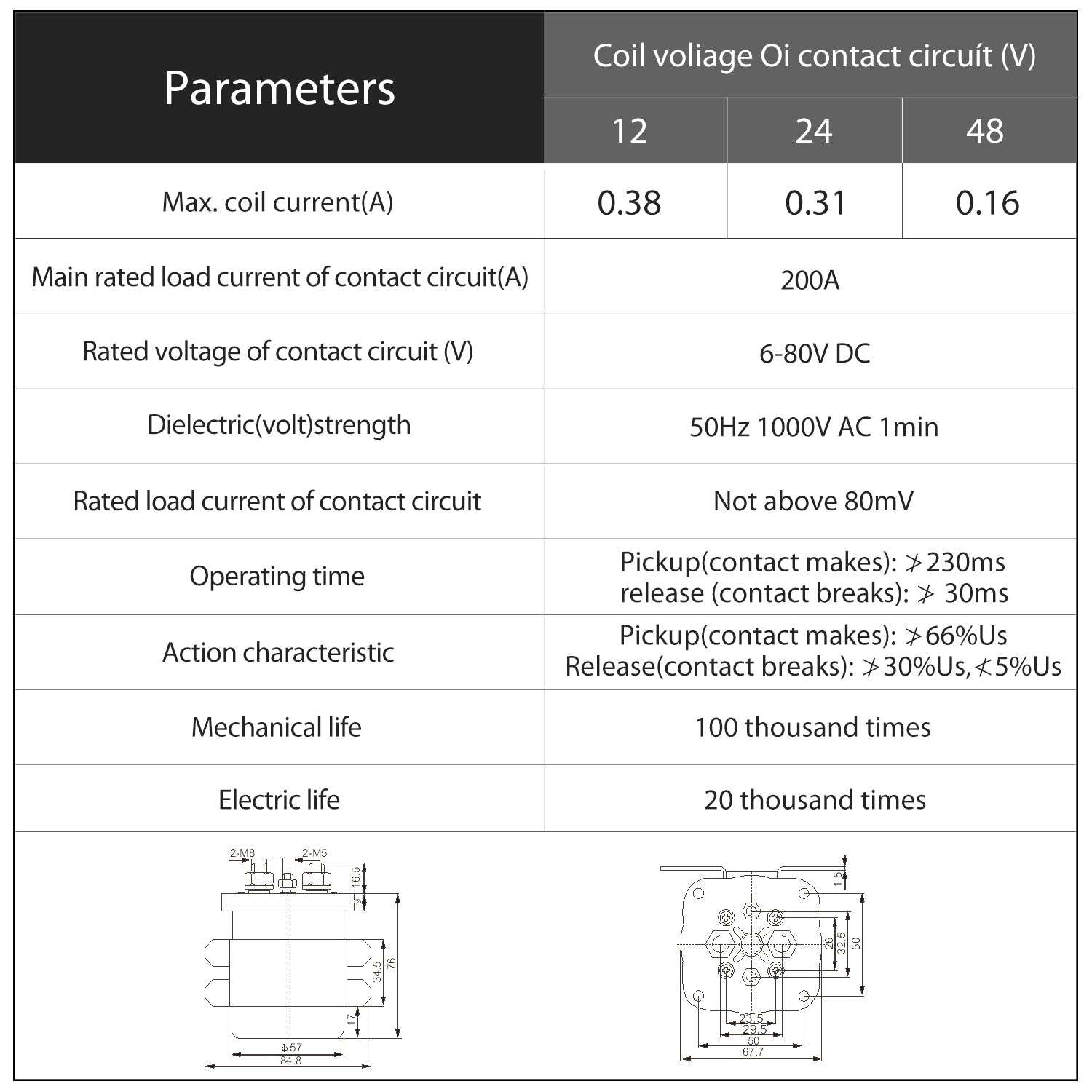

• 200-amp rated — handles 80 amps continuous and 300 amps surge capacity
• True battery isolation — prevents auxiliary loads from discharging the main starting battery
• No voltage drop — does not reduce charge voltage to the secondary battery like a standard diode-based isolator
• Multi-battery drain prevention — stops batteries in a bank from draining one another
• Extended battery life — reduces unnecessary cycling and cross-discharge between batteries

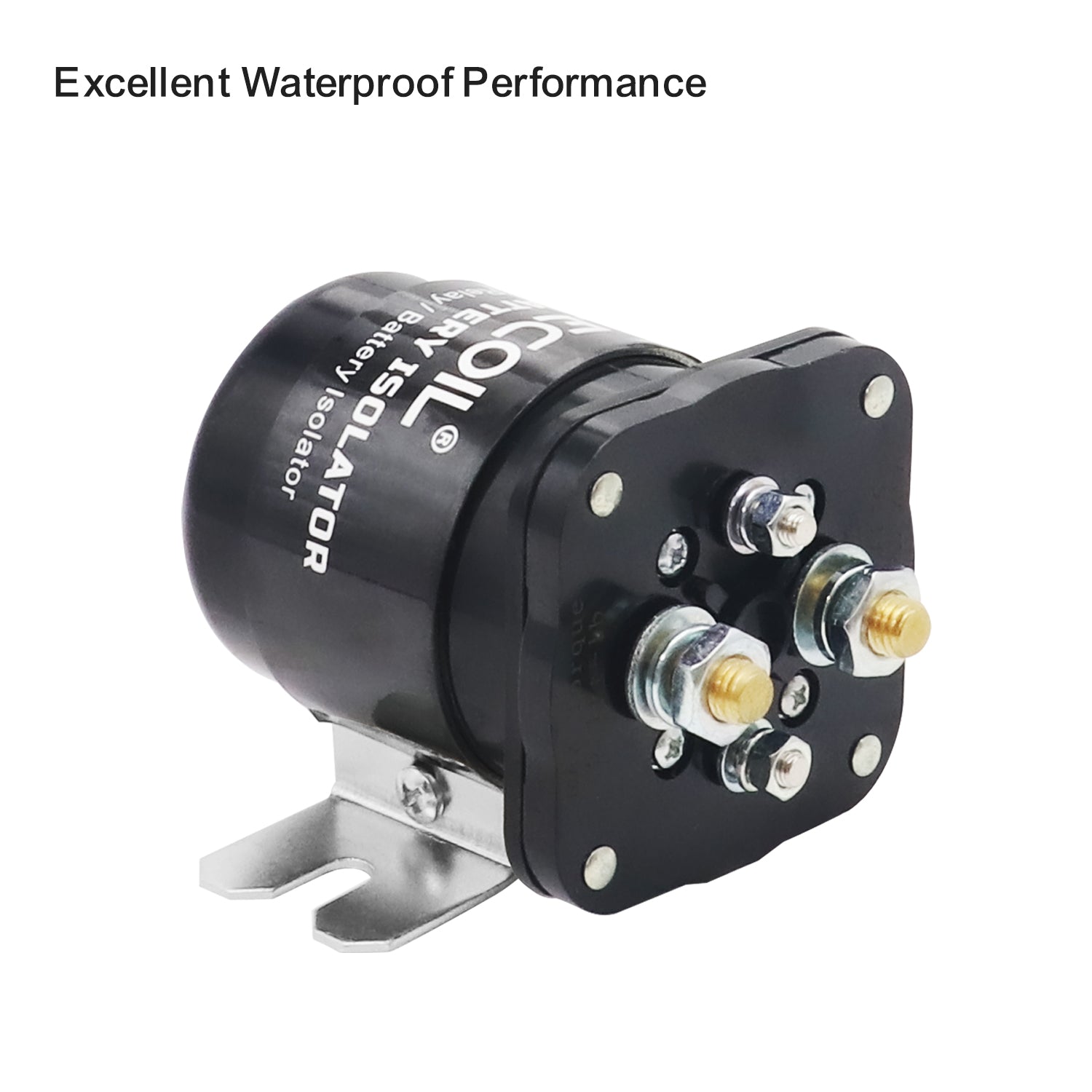

• Weatherproof construction — sealed for reliable performance in harsh or wet conditions
